Construction and Decoration waste sorting machine

Product Description

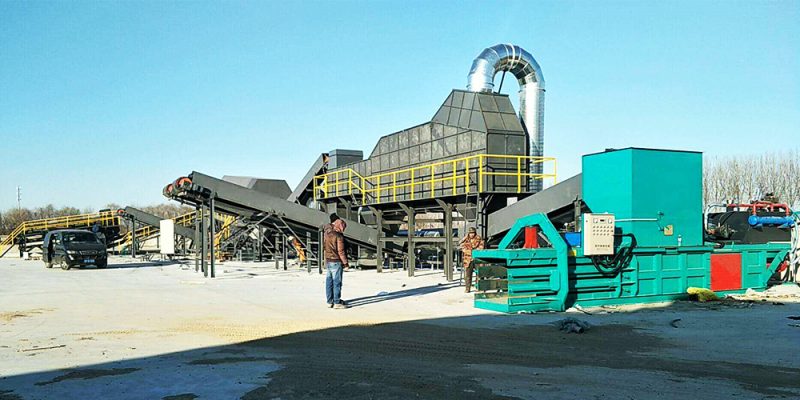

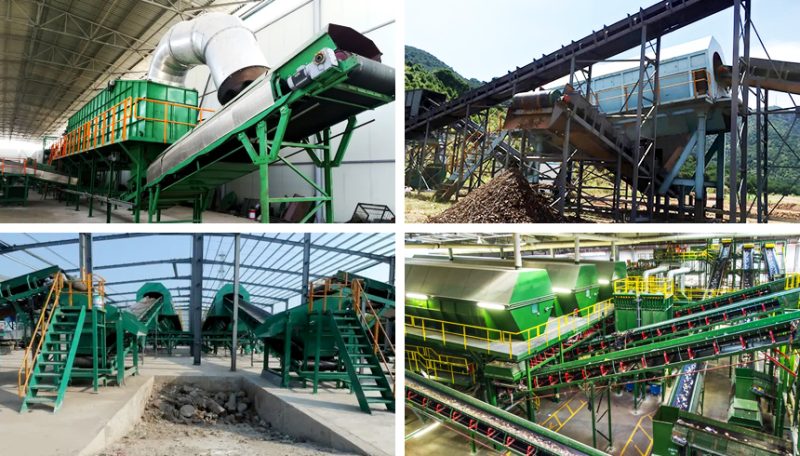

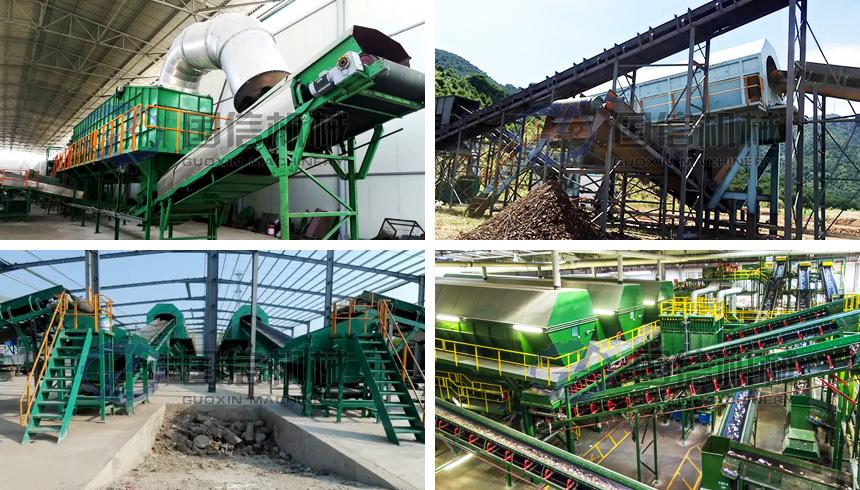

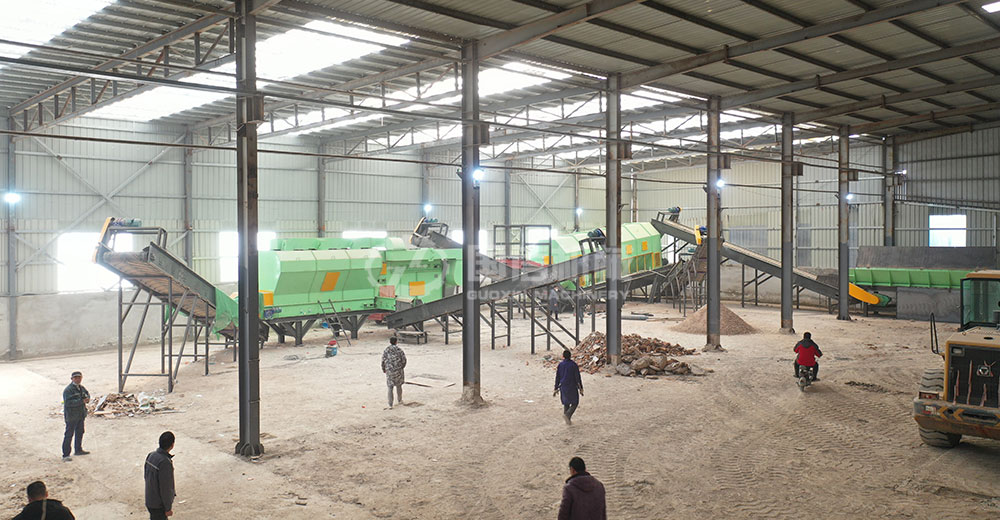

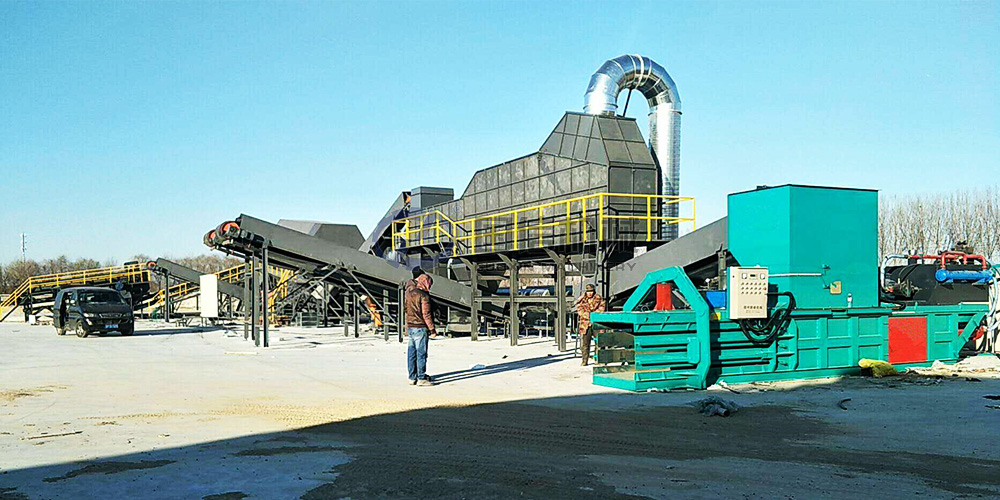

Construction and decoration waste sorting equipment consists of feeding, screening, sorting, and crushing systems. The entire production line is automated, saving labor cost and improving efficiency. Through screening and sorting processes, metals, wood, plastics, glass, and construction aggregates can be separated, achieving resource recycling and effectively solving the pollution problem caused by construction and decoration waste.

【Video display – click to play】

Features

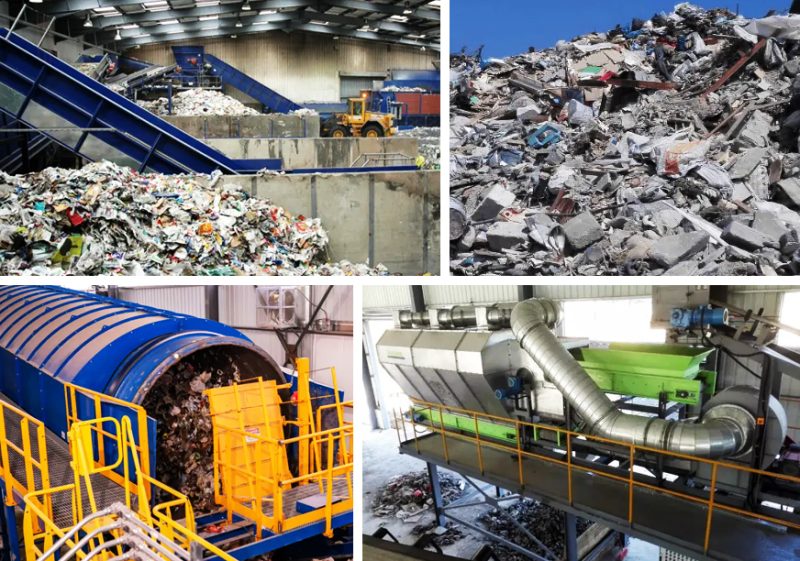

Construction and decoration waste can be recycled and reused after sorting: metals can be processed into recycled steel; bricks and concrete can be crushed into recycled aggregates for brick and tile mortar production; combustibles such as plastics and textiles can be made into RDF fuel rods for power generation.

Key features of construction and decoration waste treatment:

1. High degree of automation, intelligent sorting, saving labor costs.

2. Complete process configuration, high sorting accuracy.

4. Strong processing capacity, stable operation.

5. Turning waste into treasure, reducing landfill and environmental pollution.

Process Flow

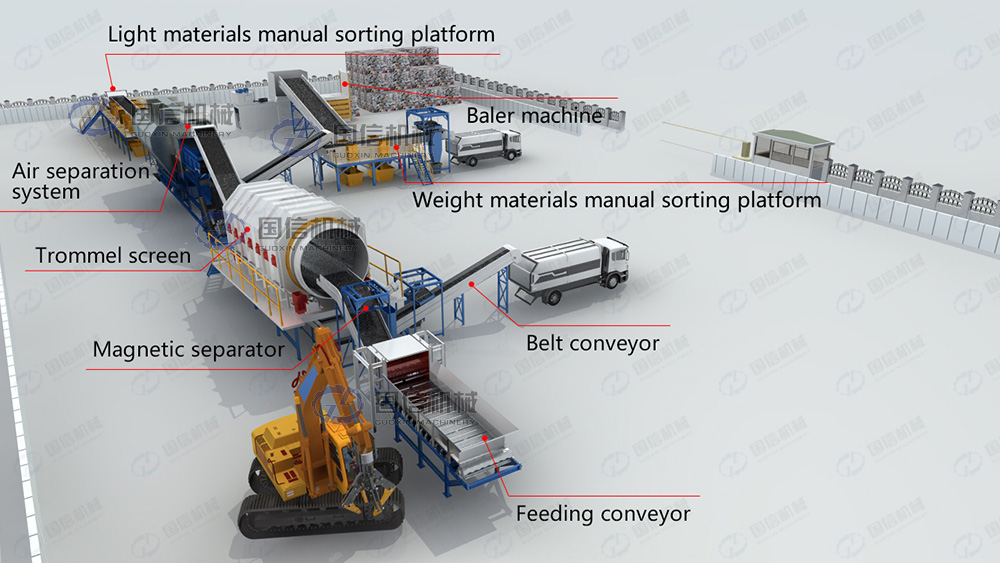

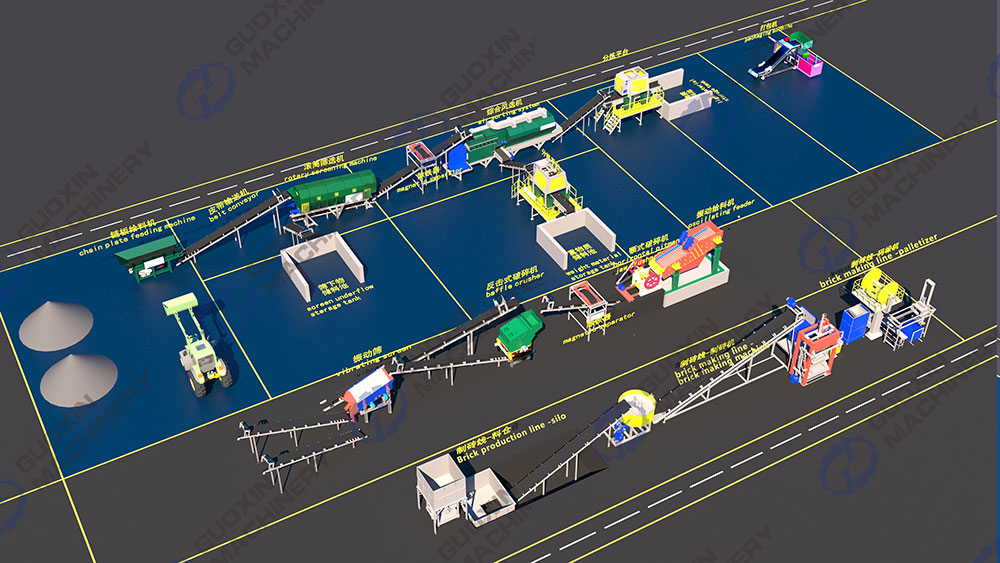

Whole Sorting Process-3D Model Demonstration

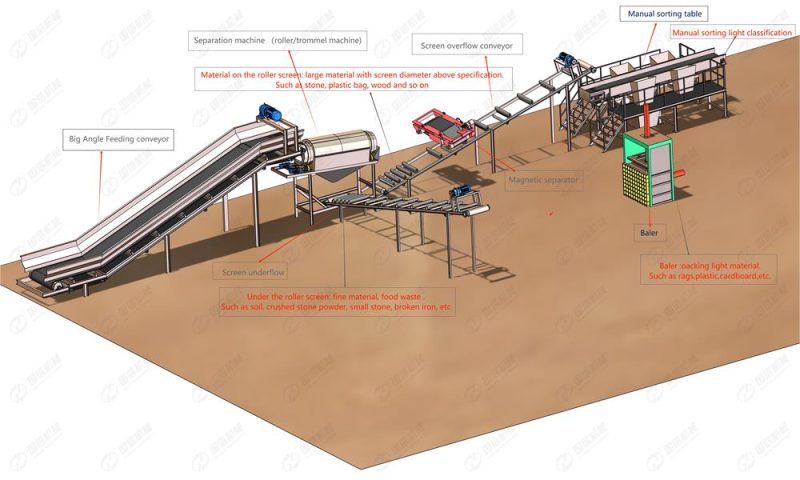

After mixed construction waste enters the silo, it is conveyed by a chain conveyor to remove oversized materials exceeding 500mm. The waste then enters a drum screen (30mm aperture) for sorting into materials smaller than 30mm (gravel) and larger than 30mm.

Materials smaller than 30mm are sorted by magnetic separator and air separator and then stored for backfilling or fine aggregate production. Materials larger than 30mm enter an air classifier system for sorting into lightweight materials (plastics, textiles) and heavyweight materials (bricks, stones).

Lightweight materials are manually sorted and then recycled to produce RDF fuel rods or baled for storage and sale. Heavyweight materials undergo simple inspection, then are crushed and screened into reusable building aggregates.

Parameter

The Construction and Decoration waste management machines have different models, including GX-100, GX-200, GX-400. and their capacity ranges from 100 to 500T per day, which satisfies the different requirement of customers.
