Landfill stale waste sorting plant

Product Description

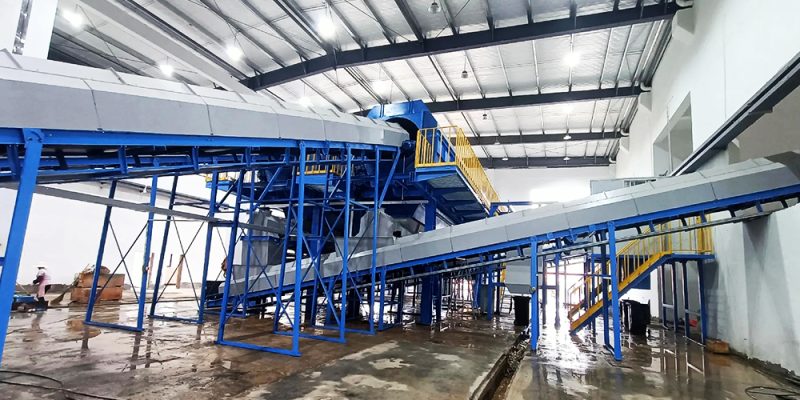

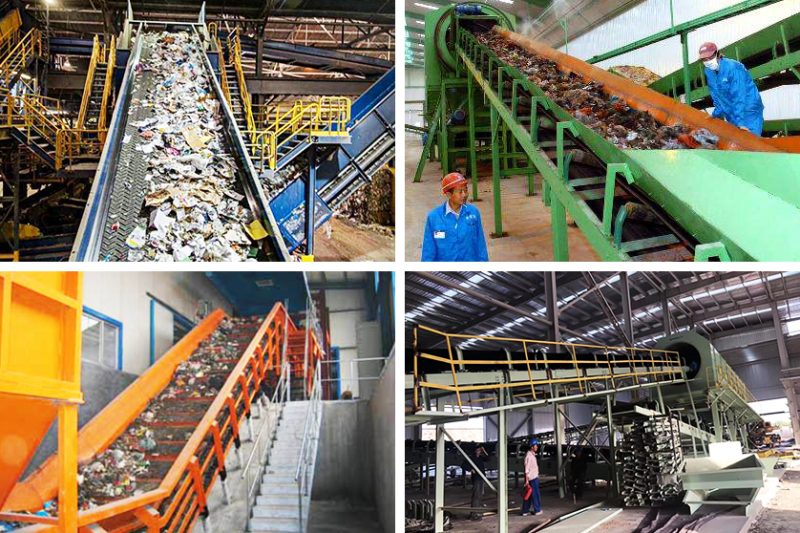

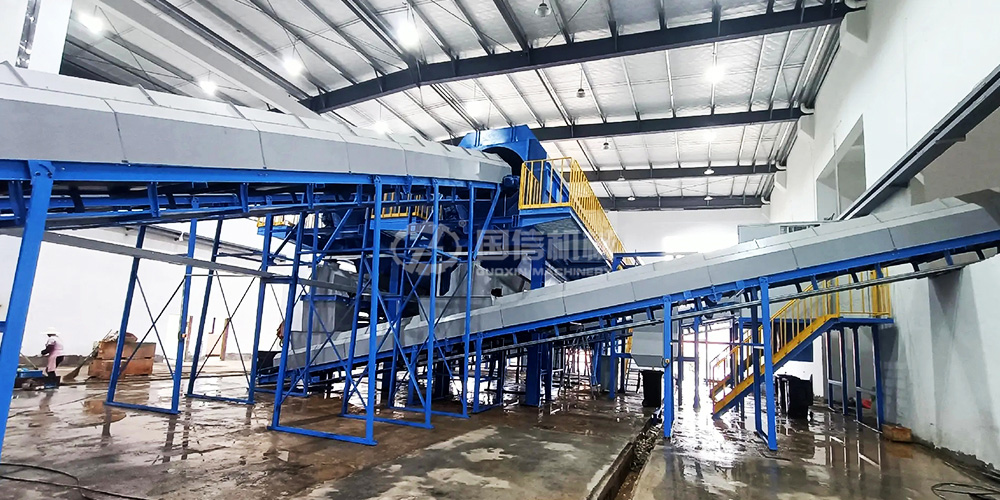

The sorting equipment for waste in landfills consists of feeding, screening, and sorting system. The entire production line operates automatically, thereby saving labor costs and enhancing efficiency. Through screening and sorting processes, metals, plastics, textiles, humus, and recycled aggregates can be separated, enabling the recycling of aged waste resources and effectively solving the problems of landfills occupying land and polluting the surrounding environment.

【Video display – click to play】

Features

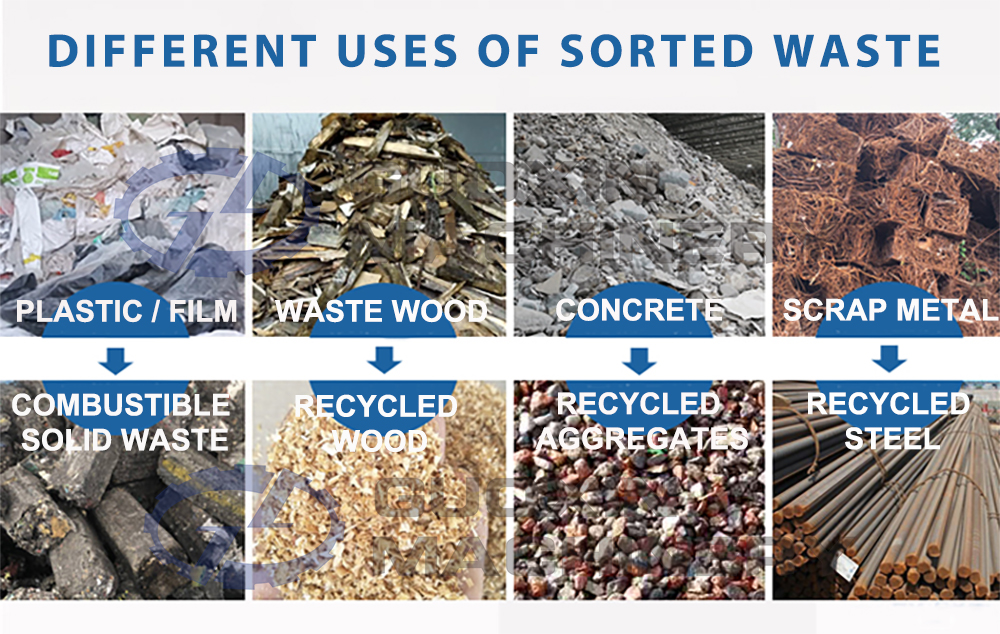

Landfill waste can be recycled and reused after treatment: metals can be processed into recycled steel; waste bricks and concrete blocks can be crushed into recycled aggregates for the production of environmentally friendly building materials; combustibles such as plastics and textiles can be made into RDF fuel rods for power generation; and the separated humus can be used for landscaping and soil improvement.

The key features of landfill waste treatment:

1. High degree of automation, automatic sorting, saving labor costs.

2. Complete process configuration, high sorting accuracy, adaptable to the sticky and mixed characteristics of aged waste.

4. Strong processing capacity, stable operation, adaptable to the treatment needs of moist and sticky aged waste.

5. Turning waste into treasure, reducing landfill space occupation, and reducing pollution to the surrounding environment.

Process Flow

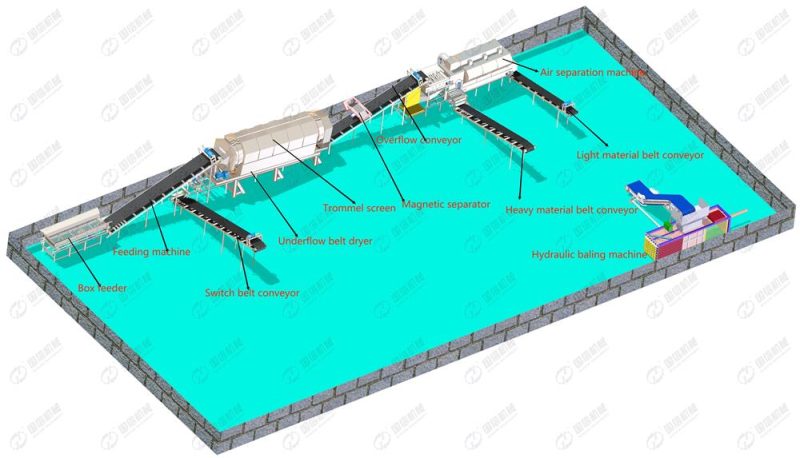

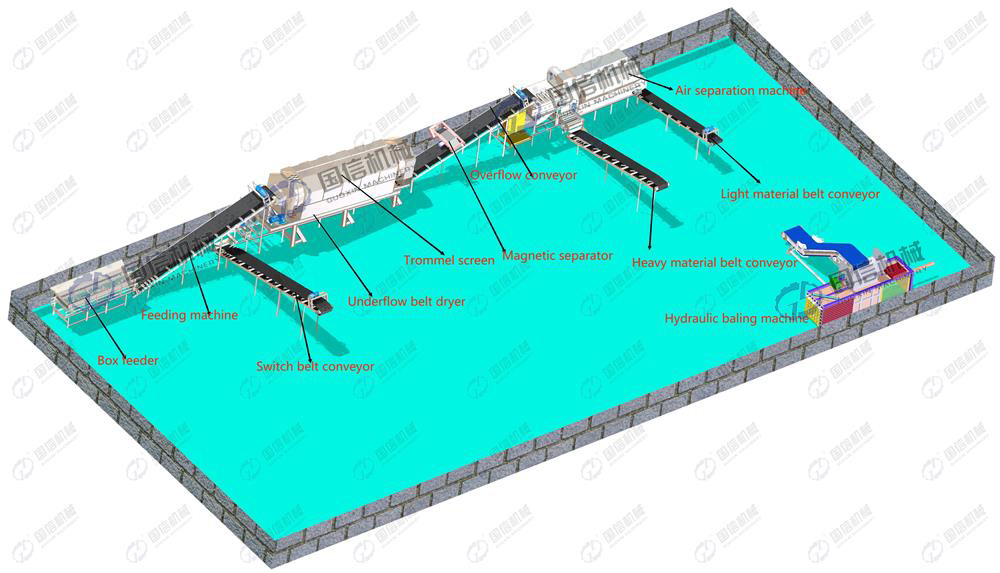

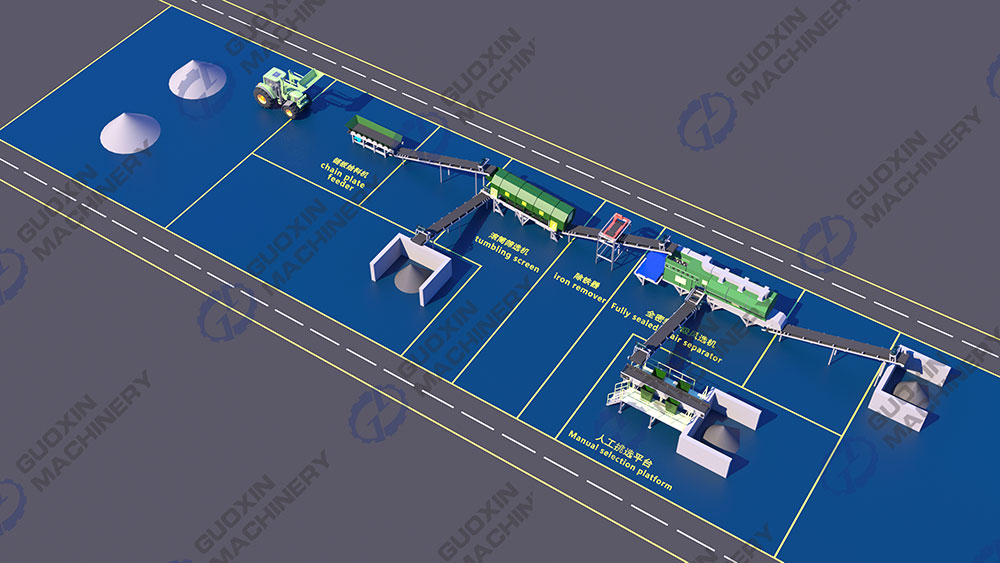

Whole Sorting Process-3D Model Demonstration

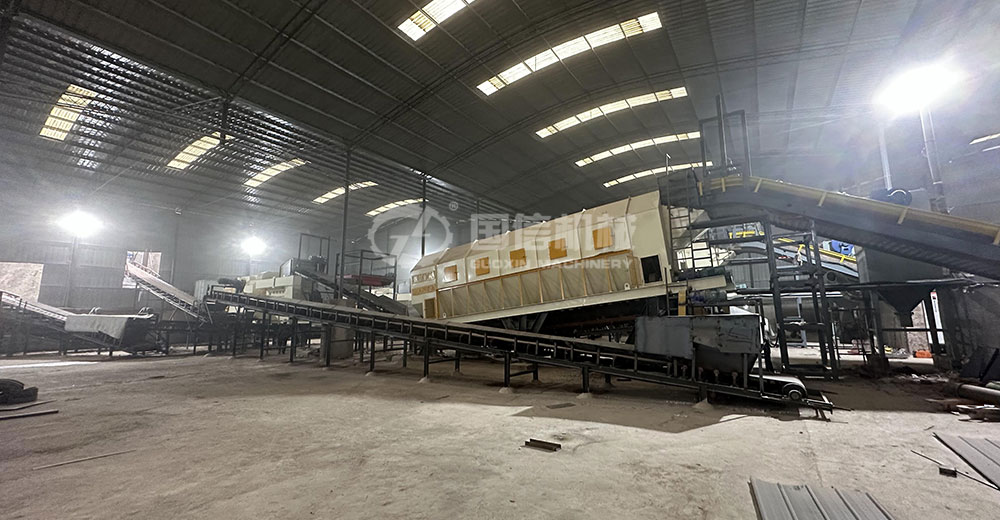

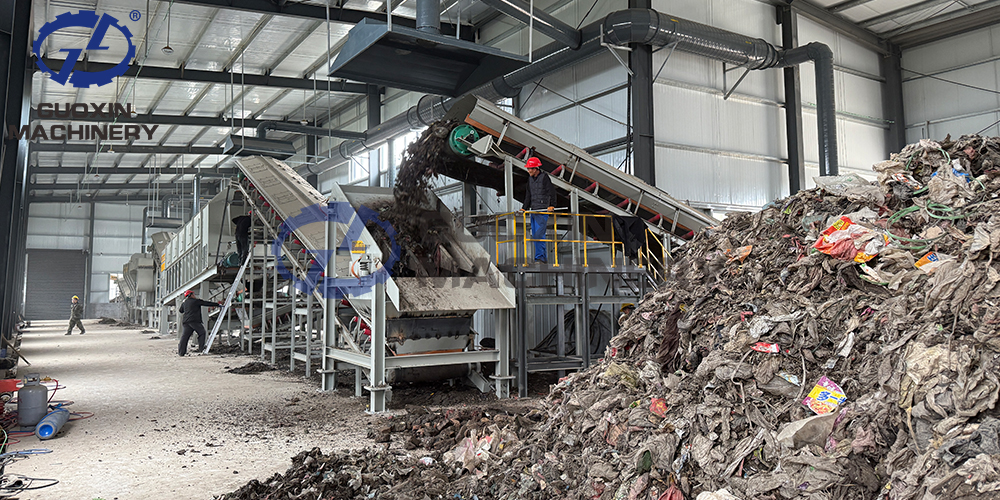

Aged mixed waste from the landfill is excavated, transported, and fed into a hopper. It is then conveyed at a constant speed by a chain-plate feeder before entering a trommel screen (with a mesh size of 30/50 mm), where it is separated into two fractions: materials smaller than 30/50 mm (humus-rich soil and fine sand) and materials larger than 30/50 mm.
The materials smaller than 30/50 mm undergo magnetic separation before being stockpiled; the separated metals are recovered for recycling, the humus-rich soil is utilized for landscaping or soil amendment, and the fine sand is processed into recycled aggregates. The materials larger than 30/50 mm are fed into an air separator, where they are sorted into lightweight materials (plastics and textiles) and heavyweight materials (waste masonry and concrete blocks).

Parameter

The Landfill stale waste management machines have different models, including GX-100, GX-200, GX-400. and their capacity ranges from 100 to 500T per day, which satisfies the different requirement of customers.
