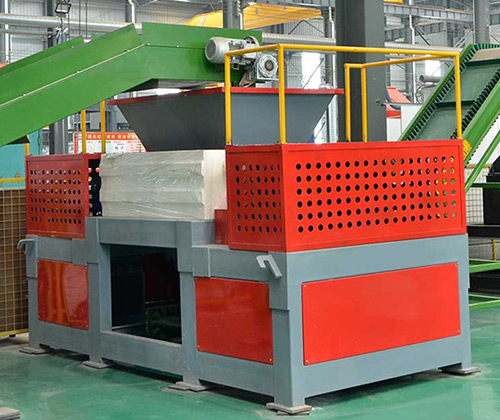

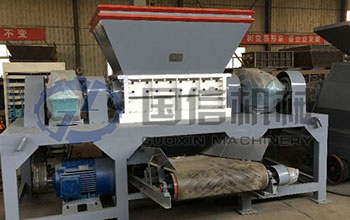

Scrap Metal Shredder

Process Introduction:

Scrap metal shredders can easily process steel, aluminum, car bodies, and various other scrap met...

Request a Quote adell@guoxinmachinery.com

Process Introduction

Scrap metal shredders can easily process steel, aluminum, car bodies, and various other scrap metals. Shredders reduce the volume of large pieces of solid waste by cutting, tearing, and compressing, achieving rapid crushing and efficient recycling.

【Video display – click to play】

Metal Shredder Machine Features

1. Automatic feeding & high-torque cutter head: easily shreds bulky metals, steel plates, aluminum alloys, etc.
2. Low-speed & high-frequency shredding: high efficiency, low energy consumption and low wear.
3. Fully enclosed safety design: closed operation for safer working.
4. Easy maintenance: detachable cutters and hydraulic box opening for simple and convenient maintenance.

Shredder Work Process

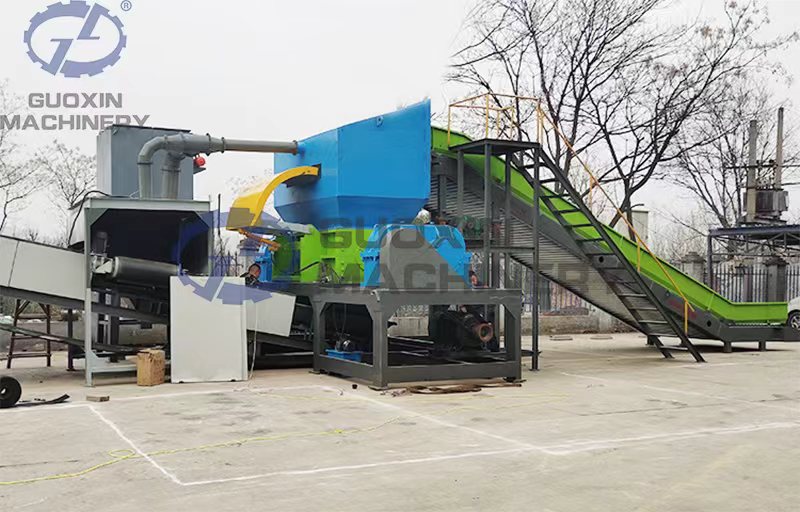

When the scrap metal shredder recycling processing production line equipment processes the materials, the materials will enter the shredding box through the feeding system, and the box is loaded with shredding blades, and the materials are torn, squeezed, and sheared by the shredding blades. The combined effect is shredded into small pieces and discharged from the lower part of the box.

Metal Shredder Parameters

Model	GX1500
Dimensions (length, width and height) (mm)	418021002400
Crushing cavity size (mm)	1500*850
Blade diameter (mm)	550
Blade thickness (mm)	50/75
Number of blades (piece)	30/20
Power (kw)	37*2
Weight (kg)	9000
Can provide customized services
